Product Specification

Standard (PCIe-x1) PCI Express interface
Quick and easy plug-and-play installation
Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s
Supports CAN 2.0 A and CAN 2.0 B active
Supports CAN FD up to 8Mbit/s (with proper physical layer implementation)
Low profile card allows ultra-compact systems
Includes low and high profile brackets
Implements Kvaser’s CAN IP in an FPGA, resulting in high max message rate

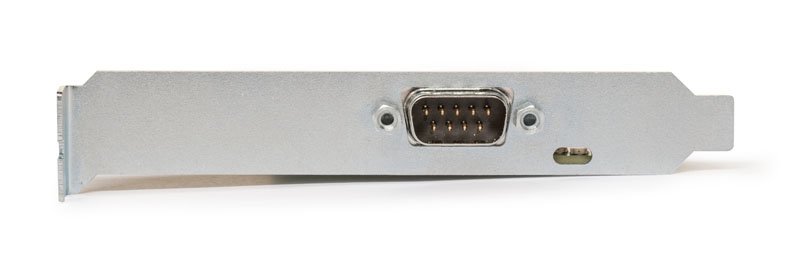

Two CAN Hi-Speed channels in a single 9-pin D-SUB CAN connector. The DS9-2xDS9 splitter connects to the CAN bus via two 9-pin DSUB connectors.
Yellow LEDs indicate when a CAN message was received or sent
Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
Supports silent mode for analysis tools – listens to the bus without interfering
Detection and generation of error frames and remote frames
Designed for standard and industrial computers
Galvanically isolated CAN bus drivers
Extended operating temperature range from -40 to 85 °C

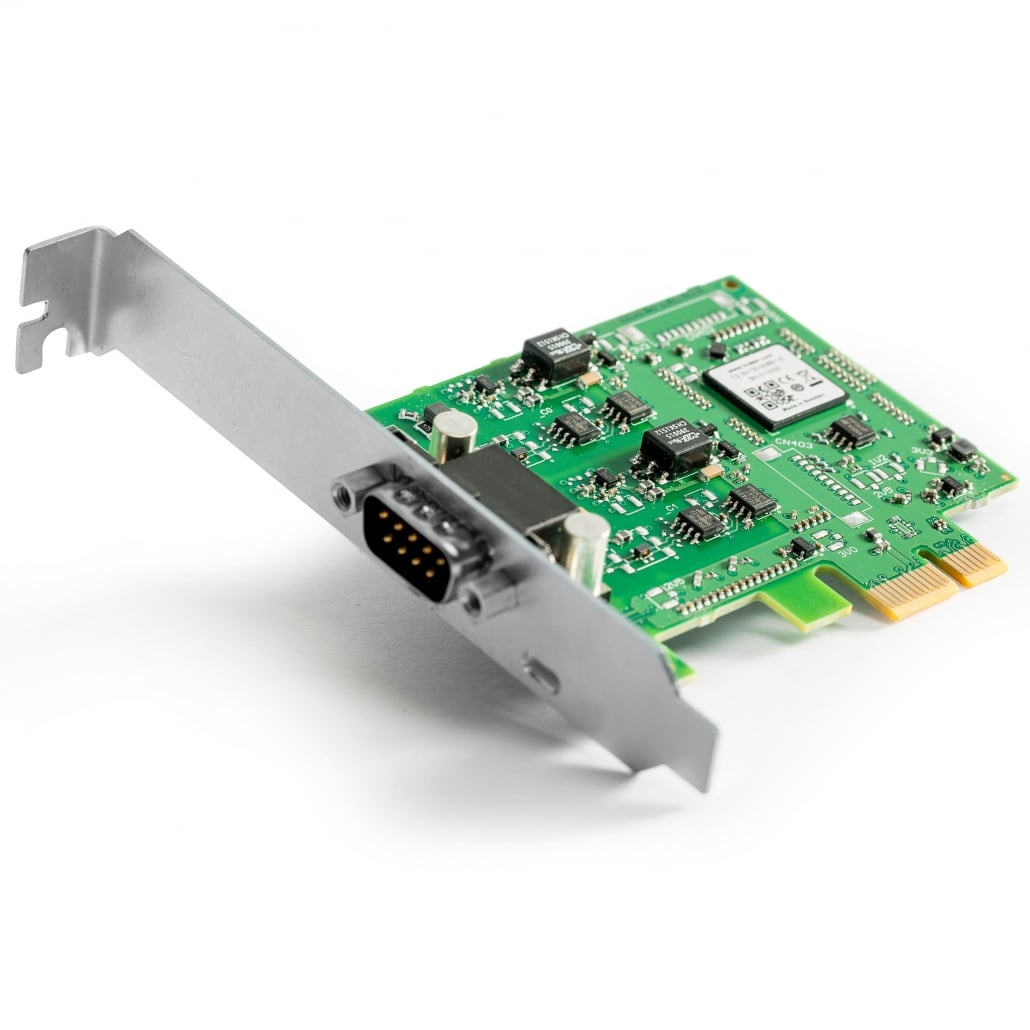

Kvaser PCIEcan 2xHS v2

Product Code: 73-30130-00861-8

Kvaser PCIEcan 2xHS v2 has a two high speed CAN channels to any standard computer board with PCI Express capability

Kvaser PCIEcan 2xHS v2 is a highly integrated, high speed controller area network (CAN) network card that adds two high speed (ISO 11898-2 compliant) CAN channels to any standard computer board with PCI Express capability. At 86 x 69 mm, this has a smaller form factor and lower profile than the Kvaser PCIEcan 2xHS.

Offering silent mode, error frame detection/generation and an on-board buffer. This add-on board fits many embedded data acquisition systems and is CAN FD compliant.

Product Code: 73-30130-00861-8 Categories: Interfaces, Kvaser Tags: DSUB-9, PCI, PCI Express
